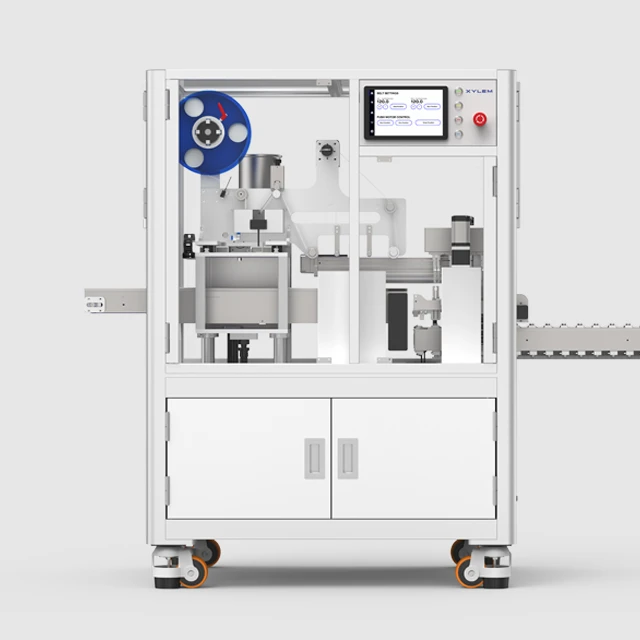

Automated Cartridge Cleaner

XC

XC streamlines the vape cart cleaning and disinfection process. This system automates the task of disinfection and removing debris/fingerprints from carts, optimizing the vaporizer cleaning process while delivering product with a high-quality fit and & finish for your customers.

XC in flow connected in series with the X4 vape filling line.

Schedule XC Consultation

XC Performance

Residual oil on the mouthpiece, threads, or exterior can interfere with airflow, cause leaks, or affect the consumer experience. Cleaning typically involves gently wiping the cartridge with a lint-free cloth or tissue, using isopropyl alcohol and specialized cleaning ribbon for stubborn residue, and allowing all parts to dry completely before capping or packaging.

Throughput +1650 units/hour
Cleaning Fluid Isopropyl Alcohol

XC Efficiency

Achieve the lowest cost per cleaned and completed unit of any system on the market with the XC.

Automated sorting to filling to capping to down stream continuous flow manufacturing hand-off allows for low operating staff overhead. No trays & jigs, enclosed system design, casters and easy utilties allow manufacturing anywhere.

Cost Per Packaged Unit 1 cent
Operators 0-1
Flow Manufacturing Yes

X4 Production Quality

Produce leak-free high fill-line carts while supressing resin oxidation to produce the most attractive and flavorful vape carts on the market.

X4 stops cart leaks by not only having the fastest capping speed on the market, it also checks every cartidge center post for defects that lead to cart leaks.

Low filling temperature plus optional Nitrogen / Argon overlay suppresses oxidation which the brightens resin appearance and retains light flavorful aromatic terpenes.

Fill Line Appearance Max
Oxidation Control N2 or Argon Overlay
Leak Control Yes
Engineered for GMP

Stainless steel holding tanks, stainless steel lines, ceramic displacement pump can efficiently handle rosin and live resin with minimal effort

Compatible to All Cartridge Formats

Specialized clamps for even strait form factor prerolls enables operators to infuse any form factor from cones to blunts resin infusions from any cordinate with the abiltiy to shape resin slugs to customize burn experience

Maximize Customer Satifaction

Engineered so that consumables like seals and needles can be purchased off-the-shelf - the simplicity and maintainablity of the Y2 aloows for years of uninterupted service

X4 Technical specs
X4 System Dimensions
58, 32.5, 22.5 (L*W*D inches)
Weight
850lbs
Tank Size
2 liters
Cart Closure Styles
Press, Click, Screw
Run Speed
1500-1800 units per hour
Temperature Range
35°C - 95°C (95°F - 203°F)
Resin Compatibility
All liquid resins - live resin, D9, D8, etc..
Resin Contact Materials
316 Stainless Steel, Ceramic
Input Power
120V, 11A
Input Compressed Air
70-90psi @ 4.6CFM
Operating Environment
In-door lab or GMP ISO 9 or above
Recommended Working Space
10ft x 10ft
Operating Temperature
35°C to 95°C (40°F to 104°F)
Frequently Asked Questions

All 510 thread top filled vape carts with any type of closure press, screw, or click.

Yes, the device supports both infusion and withdrawal operations for flexible lab use.

It comes with a 4.3 inch LCD touchscreen interface for easy control and configuration.

Yes, it automatically switches between 110V to 220V with 30W power consumption.
