QUALITY & PRECISION

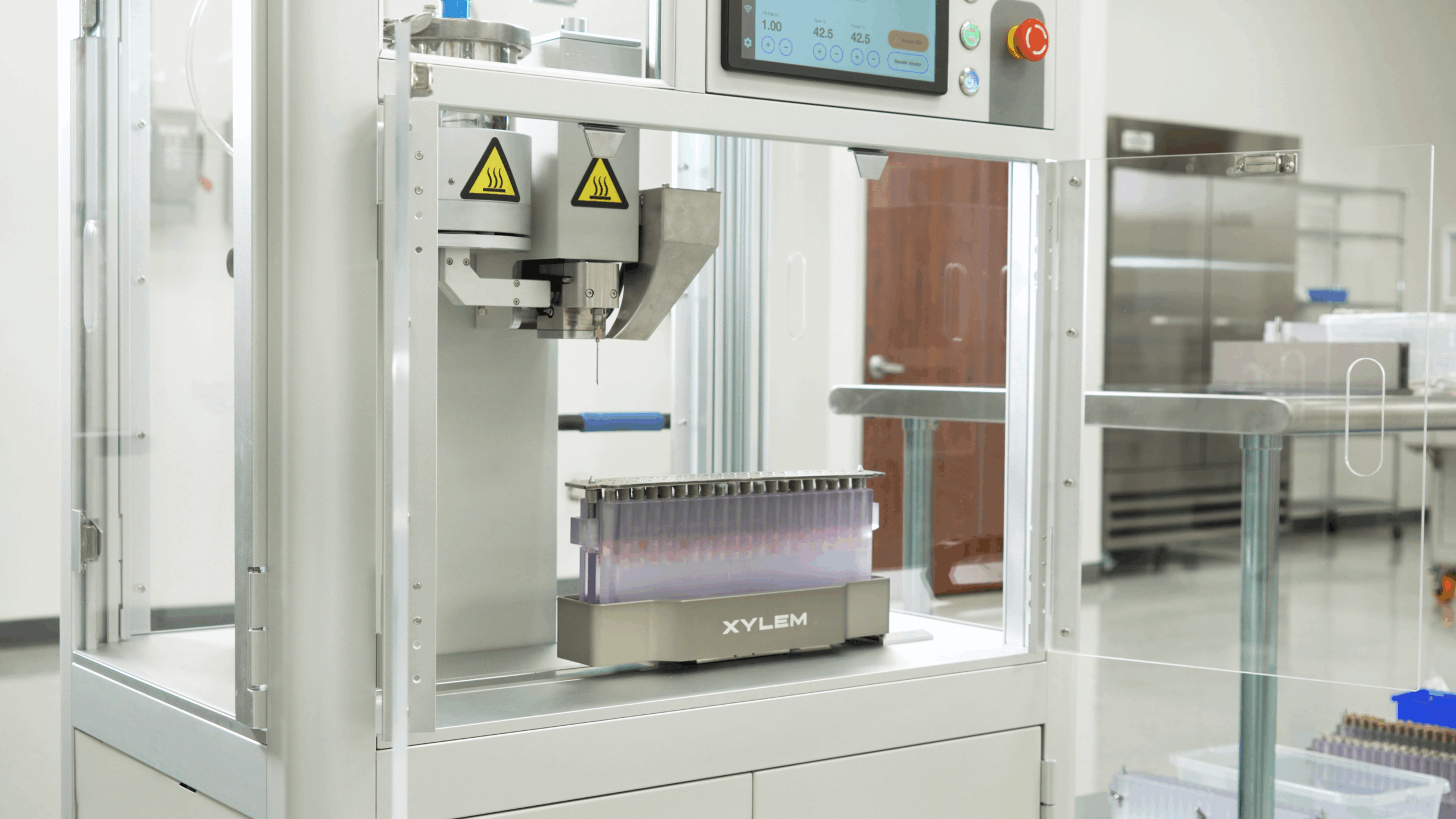

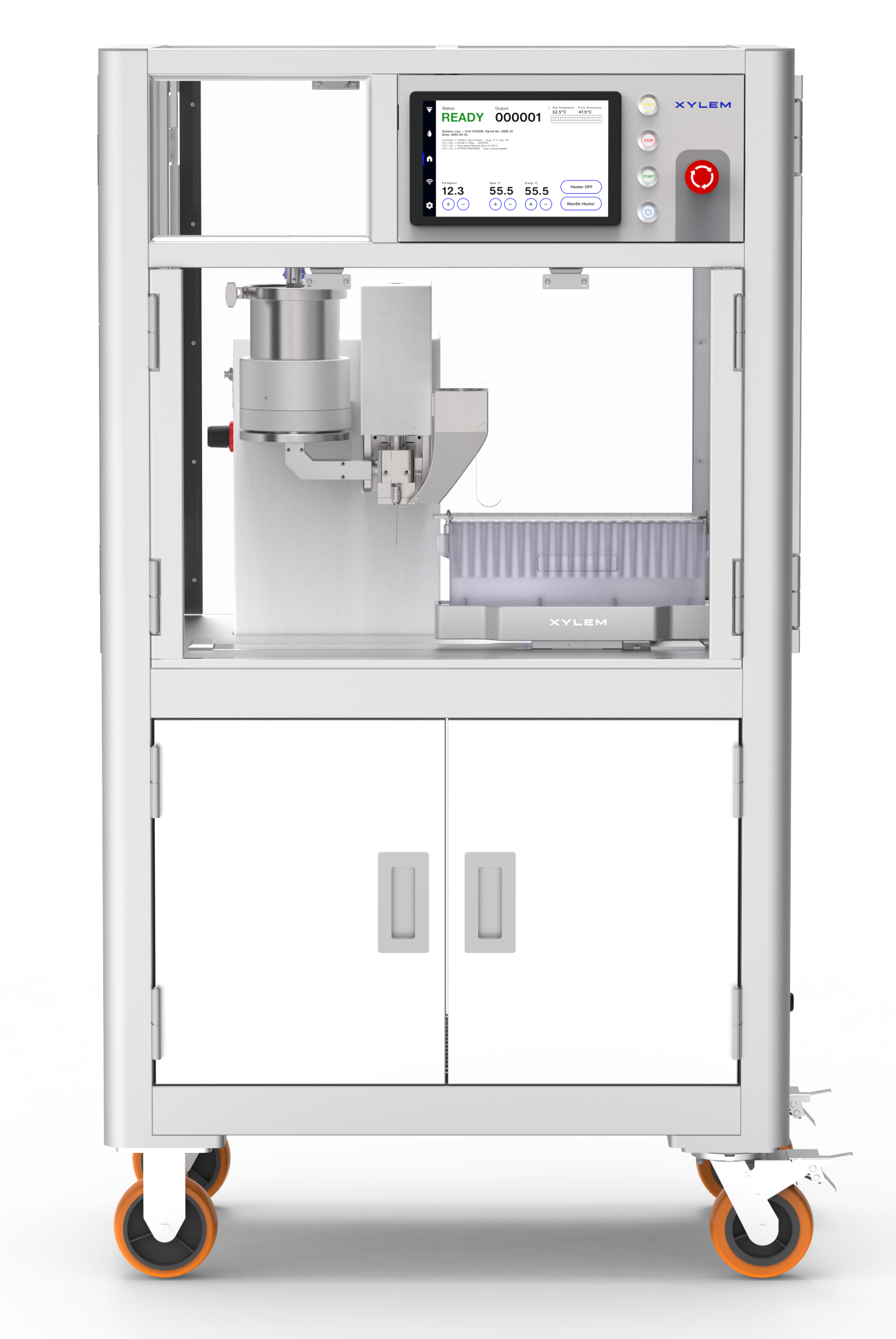

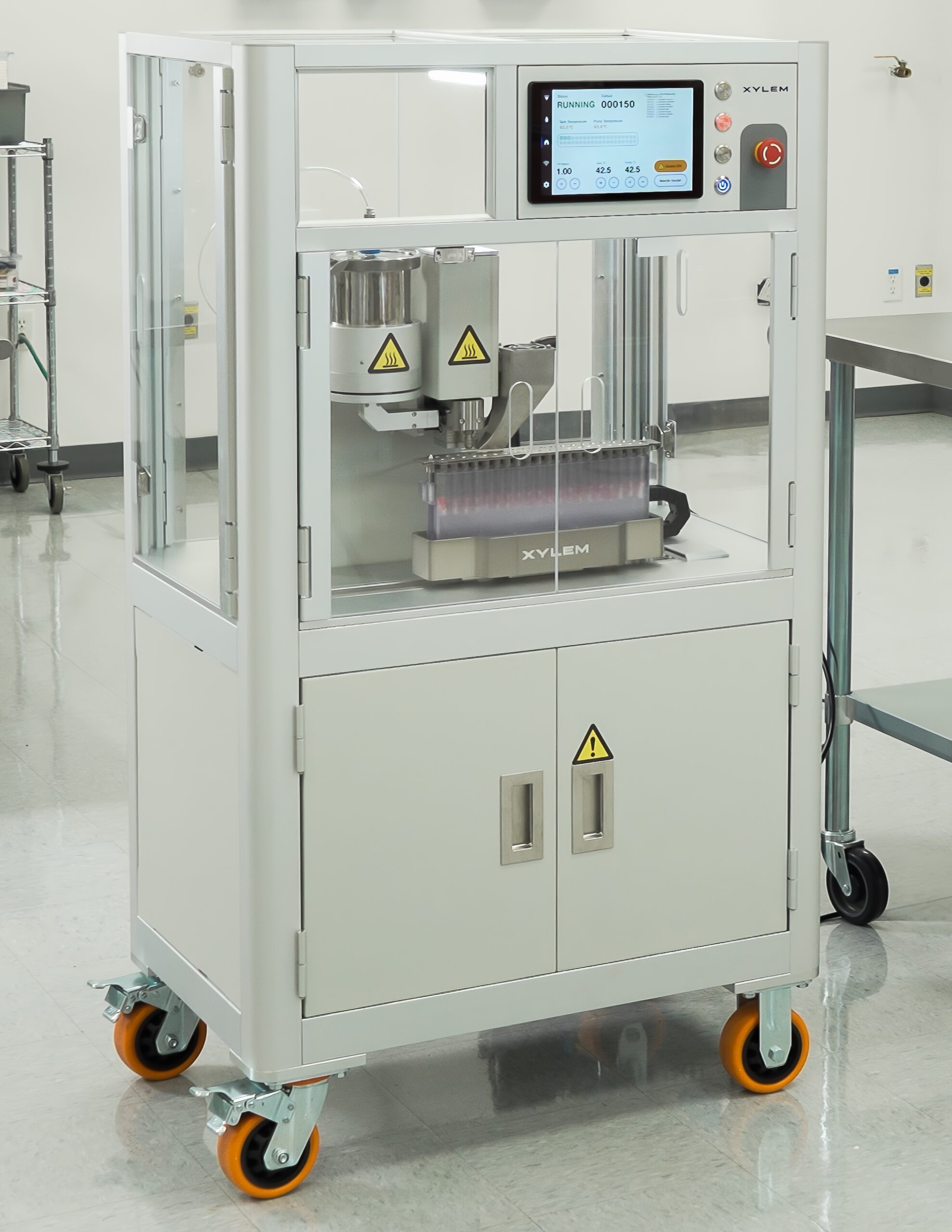

The Xylem Y1 infuses pre-rolls with resin, rosin, or any liquid extract. The system utilizes precision pumps and temperature control to deposit a highly accurate line of resin inside the pre-roll. Producing up to 500 infused pre-rolls an hour with perfect accuracy and no bleed spots.
QUALITY
CONSISTENT

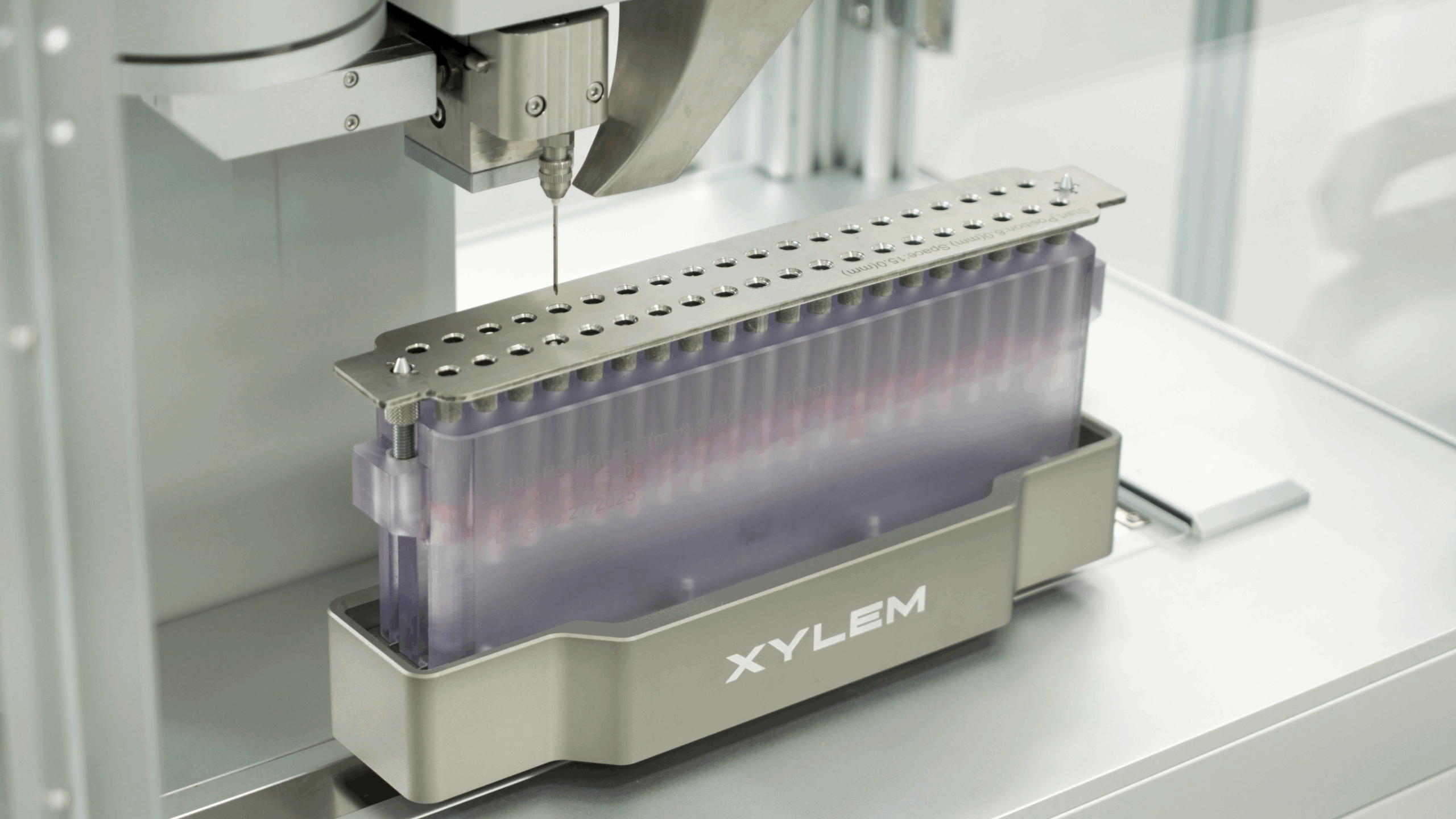

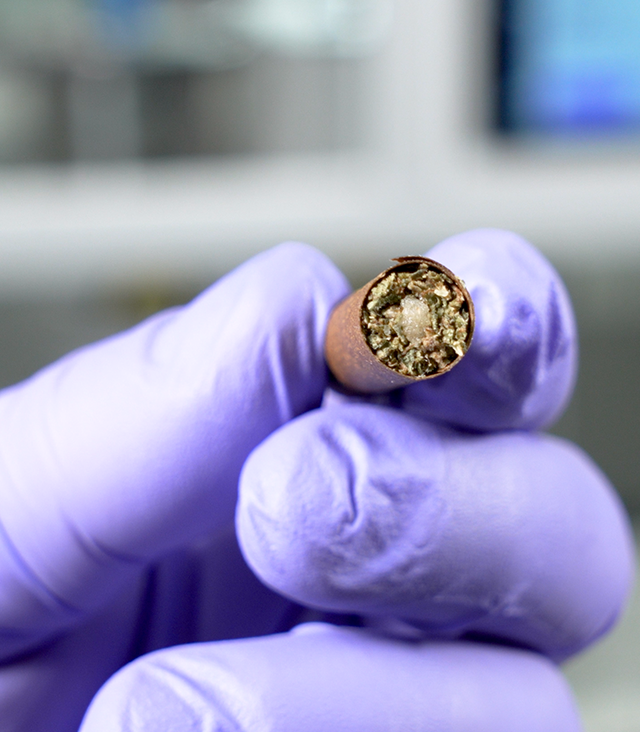

The Xylem pre-roll infuser creates premium centerline-deposited pre-rolls by precisely injecting resin while drawing up to create a perfect, even center-core deposited infused pre-roll. Operators load pre-rolls into a precision-machined holding cartridge, and then the system will take care of the rest, no matter what type of resin, from distillate to rosin. From a variety of needle sizes to make hash holes, you can customize the diameter of the concentrate from less than 1 mm to up to 2 mm.
PRECISION
PERFECT RATIOS

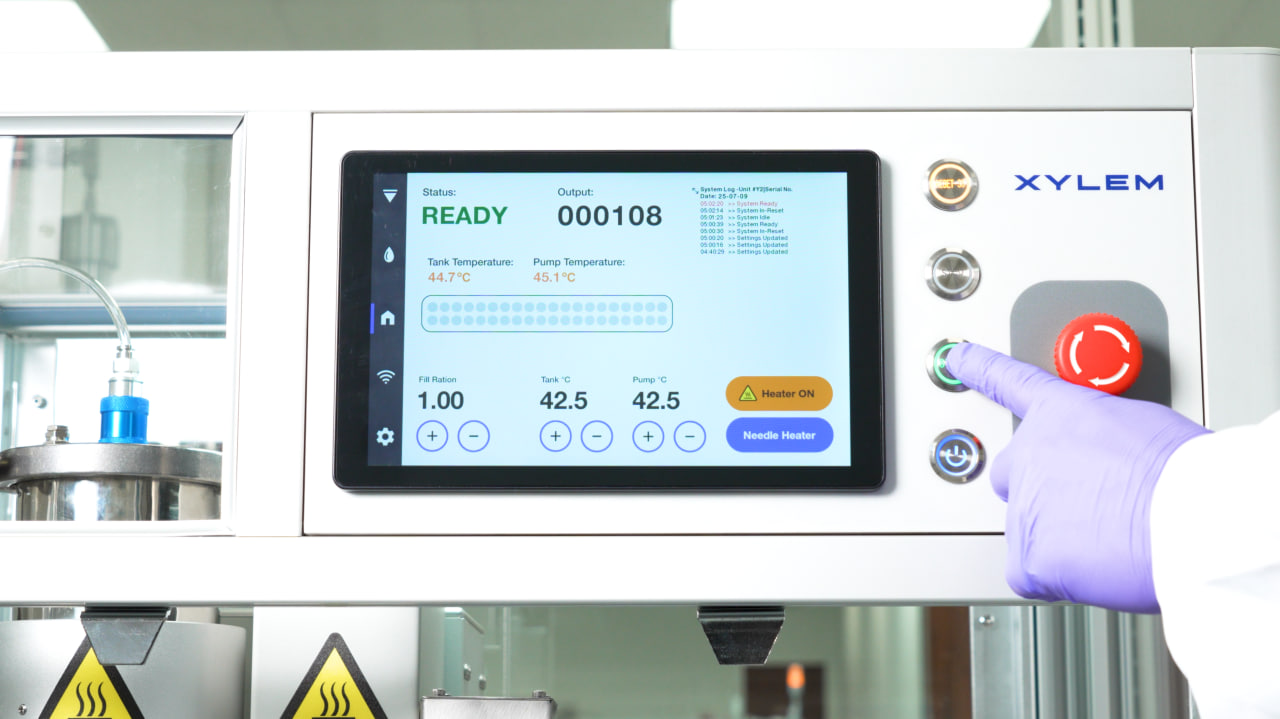

The Xylem Y1 infuses perfect centerlines using a precision pump that allows operator-adjustable length and accuracy to a fraction of a percent. Due to our filling technology, the system can handle infusion with temps as low as 35 degrees C. This allows for the preservation of terpenes and the elimination of bleed marks. It is compatible with any type of pre-roll closure and can handle high-viscosity concentrates. Moreover, an easy-to-use touchscreen UI allows users to save settings and monitor production.
FAQ
Any type of liquid concentrates: Rosin, Live Resin, Distillate, Sauce, CBD, D8, or HHC.

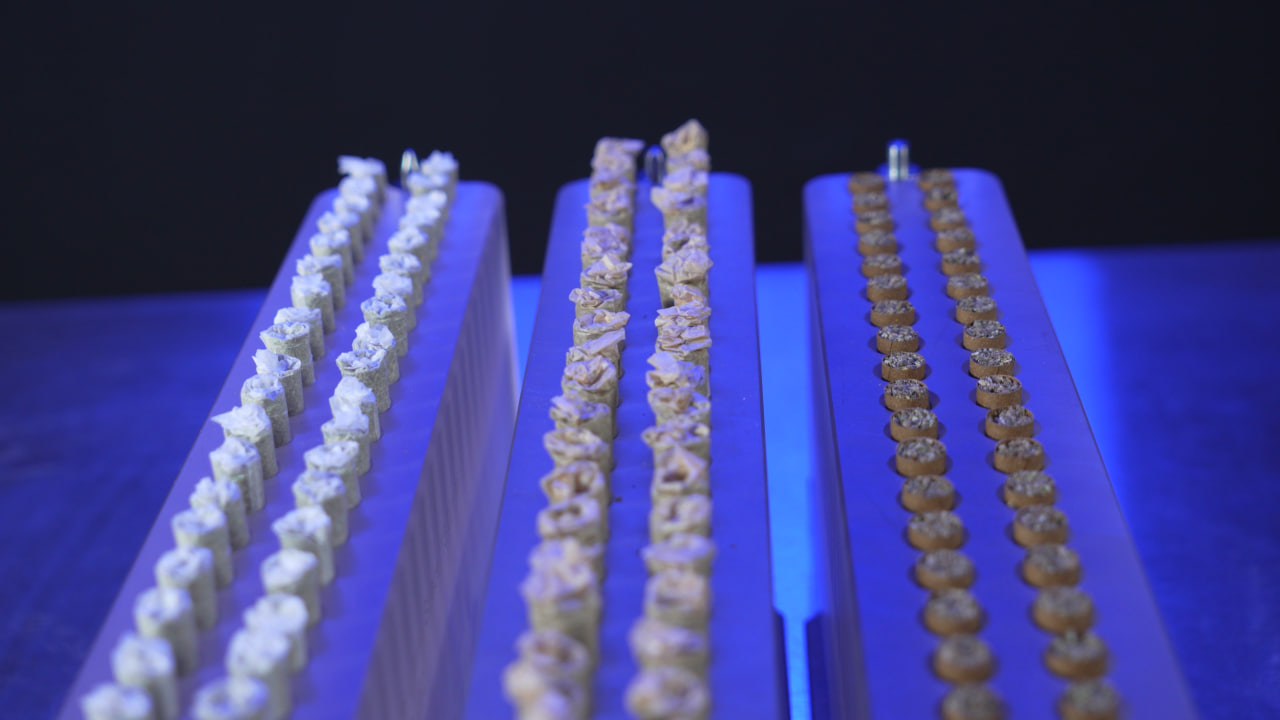

Each tray is custom made to accommodate the form factor of every client.
Yes
Paper cones, straight rolled tubes, blunt wraps, & form factors.
Yes
6 weeks
SPECIFICATIONS
Dimensions
| Height | 37.5 in |
| Length | 34 in |
| Depth | 27 in |
| System Weight | 115 lbs |
| Oil Tank | 1 liter |
| Max Pre-roll Length | 120 mm |
| Min Pre-roll Length | 40 mm |
Performance
| Run Speed | 500 units/hour |
| Temperature Range | 38C-75C |
| Distillate Compatibility | D9, D8, CBD(Liquid), HHC |
| Resin Compatibility | Live Resin / Melted Slabs / Liquified Batter |
| Rosin Compatibility | Liquefied Rosin |
| Pre-roll Closure | Twist, Tamp or Fold |
| Pump Material, Lines | Ceramic, 316 Stainless Steel |
Power / Utilities
| Input Power | 120V, 8A Max |
| Input Air PSI | 80psi @ 2.3CFM |
| Environment Temperature | 75F Optimal |
| Operating Environment | In-door lab or GMP |
| Working Space Required | 5ft x 5ft |
| GMP Disinfection & Clean | Yes |
| PPE Requirements | GMP Standards |
