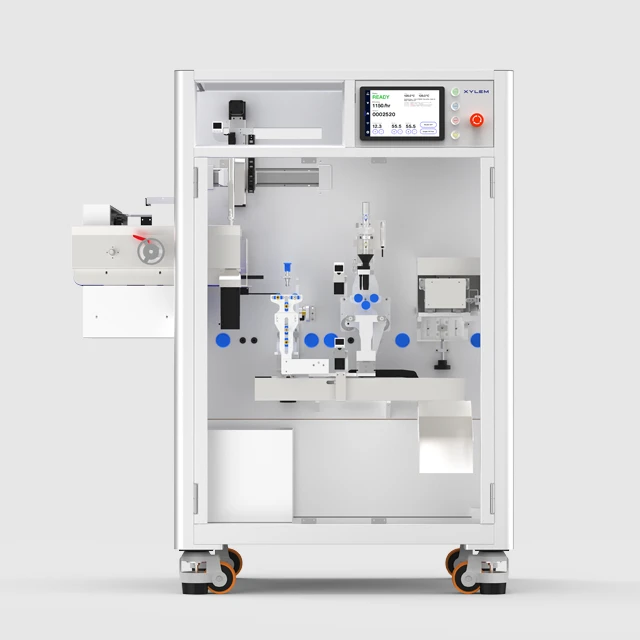

Automated Vape Cartridge Bagger

XB

XB is the first fully automated vape bagger system. This system autoloads inputs (carts and bags/pouches), greatly accelerating the final packaging process of vape carts while minimizing operator machine time.

XB can be operated independently or connected in-line with Xylem vape filling equipment.

Schedule XB Consultation

Fully Automated

XB auto-sorts, auto-orients, and auto-loads carts into bags and pouches, making this the most efficient cart bagging system on the market.

Coupled with a high-capacity bag magazine and flow-line design, operators can monitor the entire bagging process from opening, filling, and sealing, making the system easy to operate and service.

Throughput +800 units/hour
Cartridge Autoloader Capacity 500+ units
Bag Magazine Capacity 150-600 bags

CRP and Standard Bags

The XB is designed for both CRP (child-resistant packaging) bags and pouches XB.

Additionally, the system can support a range of bag sizes and bag thicknesses to accommodate various packaging requirements.

CRP & Standard Bags Yes
Seal Format Top or Bottom

Full Line Automation + Compliance

Xylem’s goal is to provide operators with equipment that can operate under any government regulatory program. The XB can connect to vape manufacturing lines for post-packaging compliance testing or operate independently for pre-packaging compliance testing.

Purpose Built for Low Interaction

Auto indexing and loading features make this system the most efficient on the market.

Seals CRP and Standard Bags

Compatible both CRP and standard bags both top and bottom seal.

Inert Gas Overlay

Extend shelf life and reduce resin discoloration/ oxidation with inert gas overlay like Argon for protective modified atmosphere packaging (MAP).

XB Technical specs
XB System Dimensions
58, 32.5, 22.5 (L*W*D inches)
Weight
850lbs
Run Speed
800+ units per hour
Bag Magazine Size
150 - 600 unit
Bag Types
Standard & CRP
Bag Size
140-170(mm) L, 70-100(mm) W
Bag Material Thickness
0.1mm-0.15mm
Sealer Temperature Range
140°C - 180°C
Cart Compatibility
0.5, 1.0, 2.0ml
Input Power
120V, 11A
Input Compressed Air
100psi @ 7.6CFM
Operating Environment
In-door lab or GMP ISO 9 or above
Recommended Working Space
10ft x 10ft
Frequently Asked Questions

All 510 thread top filled vape carts with any type of closure press, screw, or click

Top and bottom seal, standard and CRP style bags

Yes operators can choose top or bottom in configurations

Yes, in addition to sealing - the system will close the child lock as well
